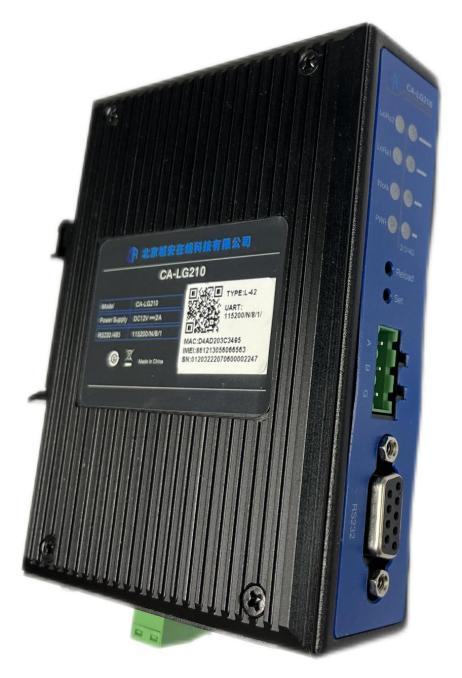

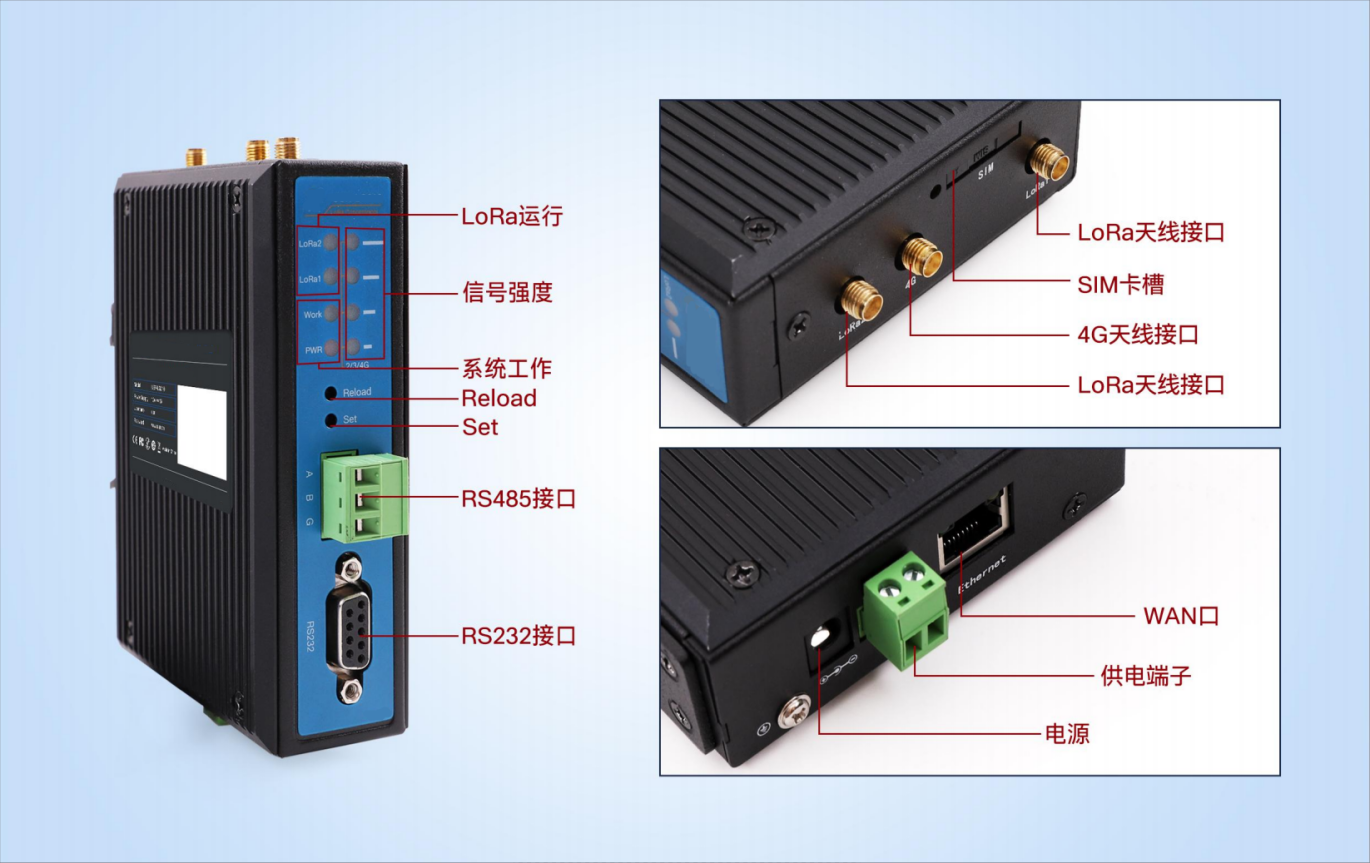

CA-LG210 Gateway

Key Features

• Stable and reliable
• Fully industrial design with a metal housing and a high protection rating;
• Wide-voltage DC 9-36 V input with power reverse-polarity protection;
• Multiple protection against static electricity, surge, electrical fast transient bursts and more;
• High-performance industrial-grade LoRa RF chip;
• High-power LoRa module for longer transmission range;
• Built-in hardware watchdog to ensure system stability;
• Data encryption and verification processing to improve the security and reliability of data transmission;
• Application intelligence
• LoRa smart self-organising network with localised zoning management automatically assigns channels to nodes joining the network, reducing on-site construction difficulty;
• ★ Power supply: 2 W low power consumption with auto start on power-up; the internal battery provides 35 hours of emergency operation
• Supports edge acquisition, active reporting, low power consumption and other functions;
• Users need not concern themselves with the protocol; simple configuration of the gateway and LoRa terminals enables communication;
• Dedicated configuration software, configurable via serial port or Ethernet port and also supporting network commands.
