Integrated Crack-Tilt-Vibration Monitor

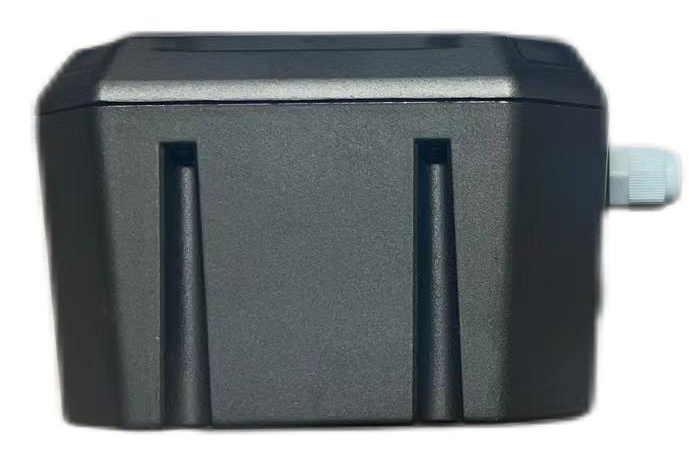

The CA-TILT-F03 integrated crack, tilt and vibration monitor can be used for crack, inclination and vibration monitoring of unstable rock masses, landslides, dangerous buildings, bridges, tunnels and road slopes.

Key Features

(1) The equipment has a built-in draw-wire sensor;
(2) The equipment has a three-axis angle monitoring function;
(3) The equipment has an abnormal vibration monitoring function;
(4) The equipment supports long-distance transmission functions such as LoRa / NB-IoT / 4G;
(5) The equipment supports Bluetooth near-field communication configuration;
(6) The equipment supports GPS/BeiDou positioning;
(7) The equipment has a built-in sound-and-light component for operating status indication or abnormal-state warning announcements;
(8) The equipment supports a variety of mounting accessories and suits various application scenarios;
(9) The equipment is battery-powered and runs continuously for about 5 years. It is easy to install, and can be fixed with expansion screws, hoops or adhesive bonding, or can be fitted with an external solar panel and permanent power supply for monitoring.
(10) The equipment supports local linkage alarming with alarm devices via LoRa

Specifications

Parameter	Value
Parameter type	Remarks
Draw-wire accuracy	0.2 %F.S
Draw-wire range	500 mm/1000 mm/2000 mm/5000 mm
Range selectable	Inclination accuracy
XYZ three directions	Inclination range
Inclination resolution	0.001
Acceleration range	±2 g
Three-directional	Near-field data communication distance
Bluetooth module capable of	Fast near-field recovery
Communication method	4G/NB-IoT/LORA
GPS positioning accuracy	5-10 m
BeiDou positioning accuracy	5-10 m
Protection capability	IP68
Sampling interval (s)	0.01-7200
Default 1 s, configurable	Upload interval (s)
Configurable on request	Operating temperature(°C)
Operating humidity (RH)	0 – 99%
Reporting method	Scheduled reporting and threshold-triggered reporting
Power supply method	Soil moisture in the space between. Its determination methods include the oven-drying method, the radiation method, the dielectric property method, nuclear magnetic resonance, the separation
Preset power interface	Supports battery expansion
Warning method	On-site siren, cloud back-end warning, SMS warning
Installation method	Easy to install: it can be fixed with expansion screws, direct plug-in mounting, hoops or adhesive bonding
