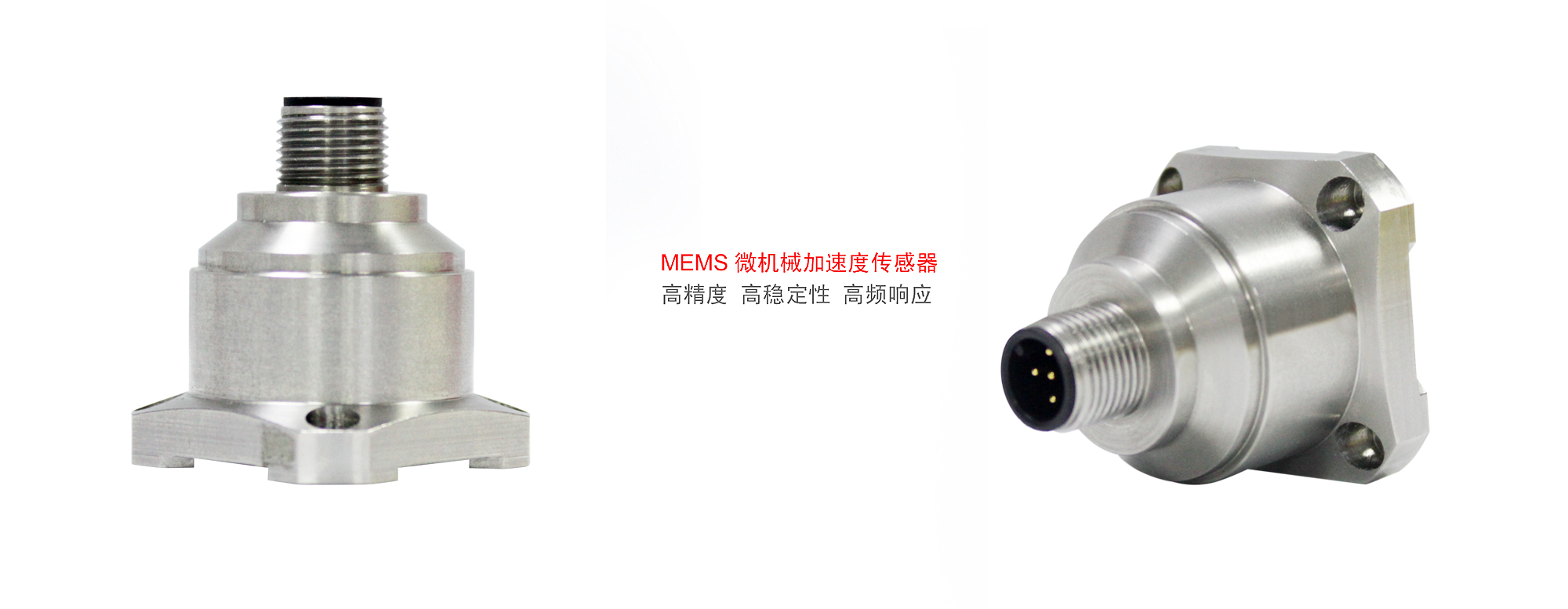

CA-AKF4 Triaxial Accelerometer (wired)

The CA-AKF4 triaxial accelerometer is a widely used accelerometer series independently developed and manufactured by Beijing Chengan, suitable for vibration testing, impact testing and many other fields. The product uses a digital interface output, with RS232/485/TTL selectable, and different address codes can be set so that multiple sensors can be connected in series over long distances, facilitating multi-point measurement and data analysis. The CA-AKF4 is a single-crystal-silicon capacitive sensor, composed of a micromachined silicon chip, a low-power ASIC for signal conditioning, a microprocessor for storing compensation values, and a temperature sensor. The product has low power consumption, is calibrated, is robustly constructed and provides stable output. The new electronic configuration provides a solid-state power supply for reset and protection against overvoltage. The long-term stability of the scale factor and the typical bias value are less than 0.1% over the full measuring range. This series features a robust structure, low power consumption and excellent bias stability, ensuring stable and reliable output.
